Roofing

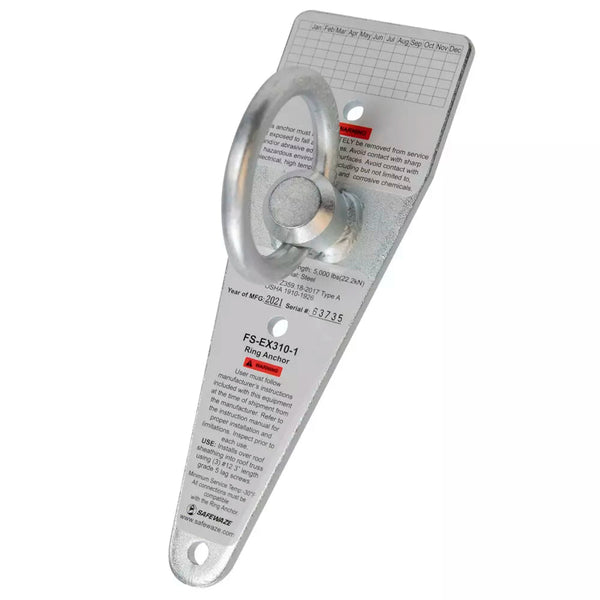

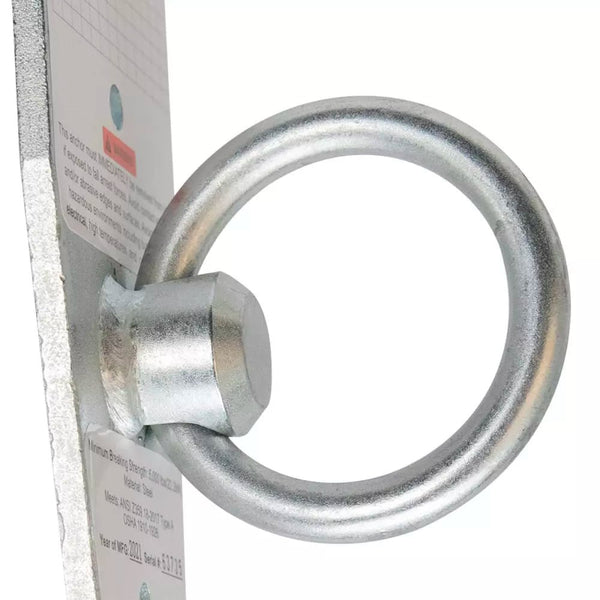

The Ring Anchor is a compact reusable anchor solution with a large ring connection point. Easily installs on wood or concrete roofs with included threaded fasteners provided.
Features:
-
Reusable anchor for wood and concrete
-

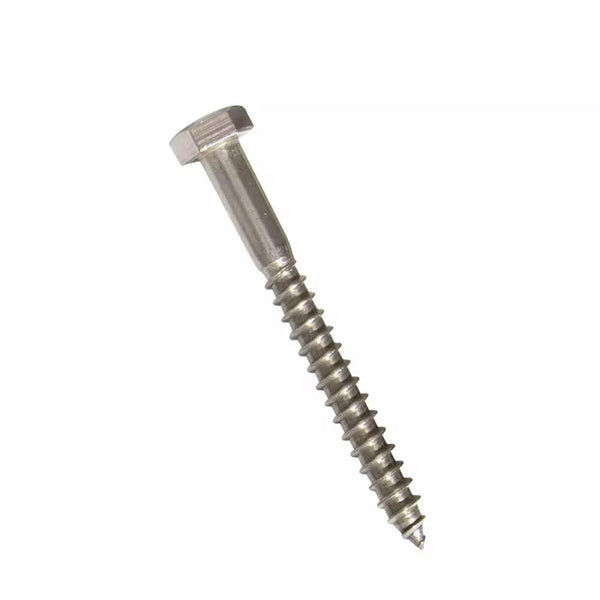

For wood Installation use (3) 5/16 in. x 3 in. hex lag screws (included)
-
For concrete installation use (3) 5/16 in. x 2-1/4 in. hex head tapcon screws (not included)
| Materials: | Zinc plated steel anchor, stainless steel fasteners |
| Weight: | 1.8 lbs. (.8 kg) |
| Length: | 9" (228.6 mm) |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 Type A |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
