Steel

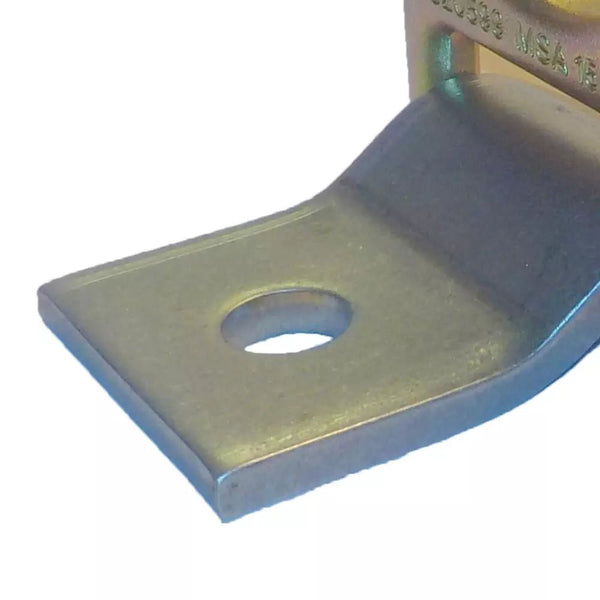

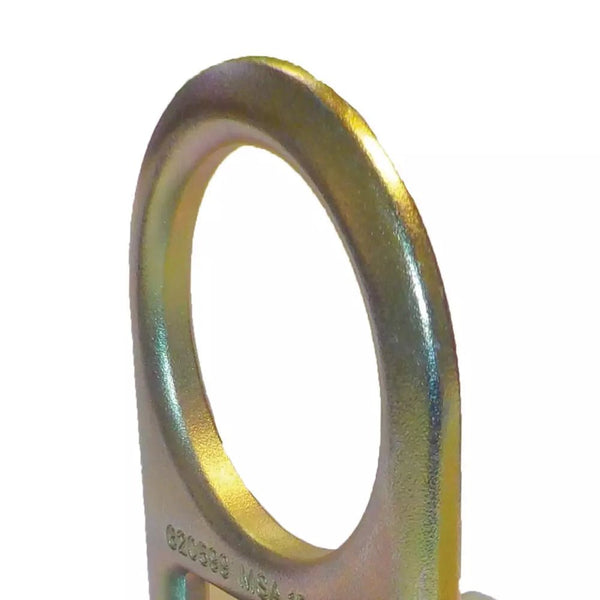

The Bolt On D-ring Anchor can be used in temporary or permanent applications. Design allows for free movement of D-ring after installation. Ideal for use as a single point anchor or as part of a horizontal lifeline system.
Features:
- D-ring moves freely after installation
- Can be bolted or welded on
-
Materials: YCM plated steel D-ring and plate Weight: 1.2 lbs. (.5 kg) Dimensions: 1/4” x 2” x 4-1/2” Minimum Breaking Strength: 5,000 lbs. ANSI Weight Capacity: 130-310 lbs. (59-141 kg) OSHA Weight Capacity: Up to 420 lbs. (191 kg) OSHA Standards: 1926.502, 1910.140, 1910.66
