SERIES STANDARD
Duty Rating: IAA
Load: 375

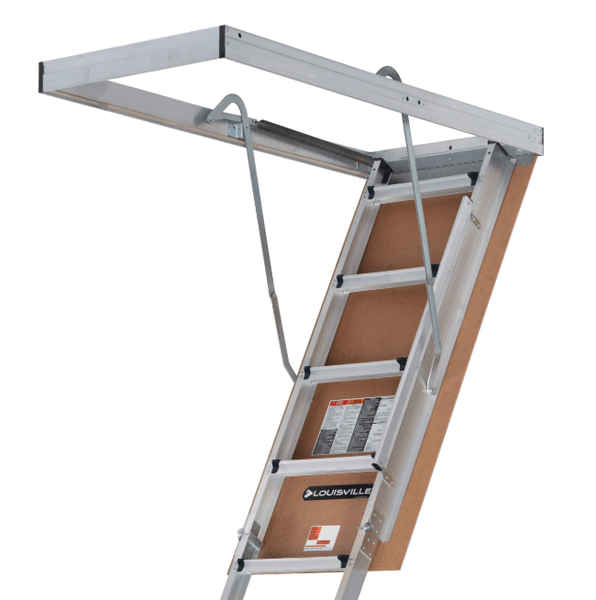

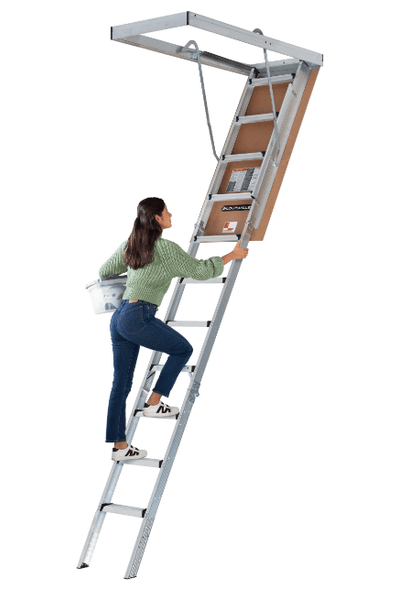

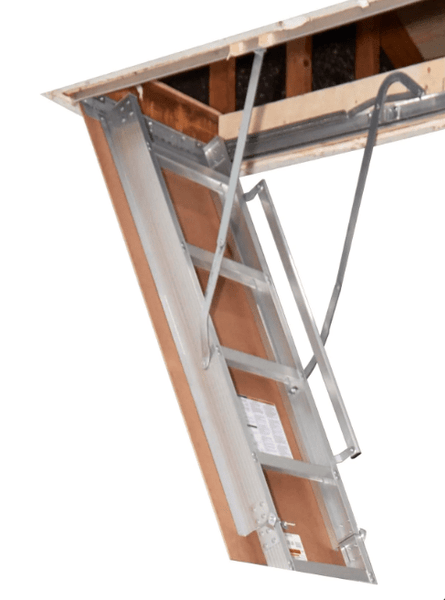

This Louisville aluminum attic ladder has a working load capability of 375lbs. This aluminum attic ladder fits ceiling heights of 7′ 8″ to 10′ 3″ and has a rough opening of 25.5″ X 54″. The AH2540MS features a sturdy, yet lightweight design with pre-drilled holes for easier installation. It features a spring operated door, factory installed energy efficiency weather stripping, adjustable shoes, slip resistant steps, and an aluminum handrail for a comfortable transition. The Louisville AH2540MS aluminum attic ladder meets or exceeds the safety standards set by ANSI.
FEATURES
- Sturdy, yet lightweight design for easier installation
- Pre-drilled holes for easier installation
- Available in 22″ & 25″ wide openings
- Weather stripping that reduces energy loss

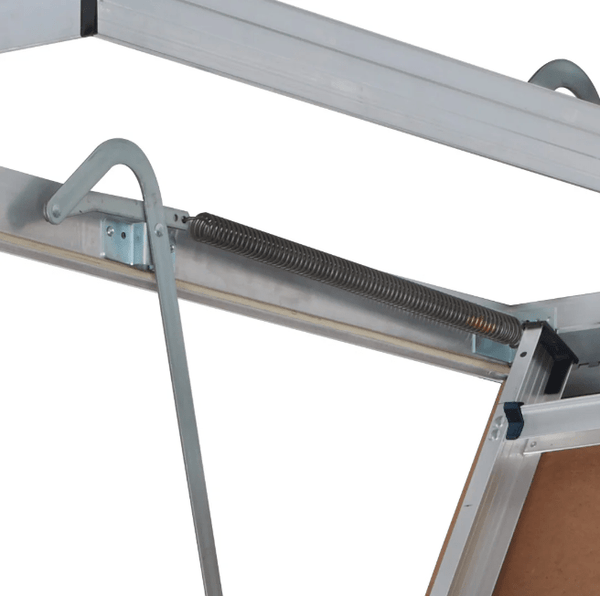

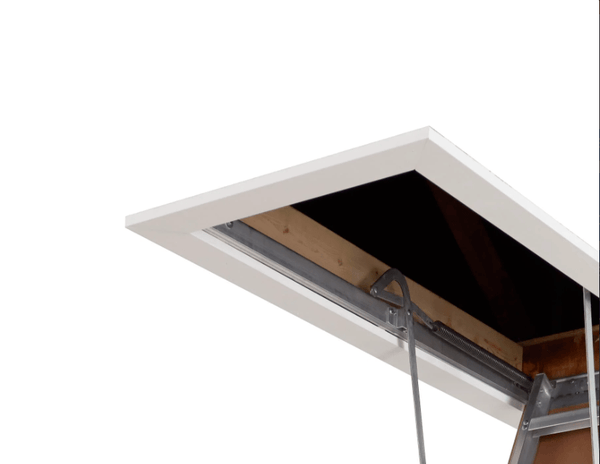

- Spring operated door

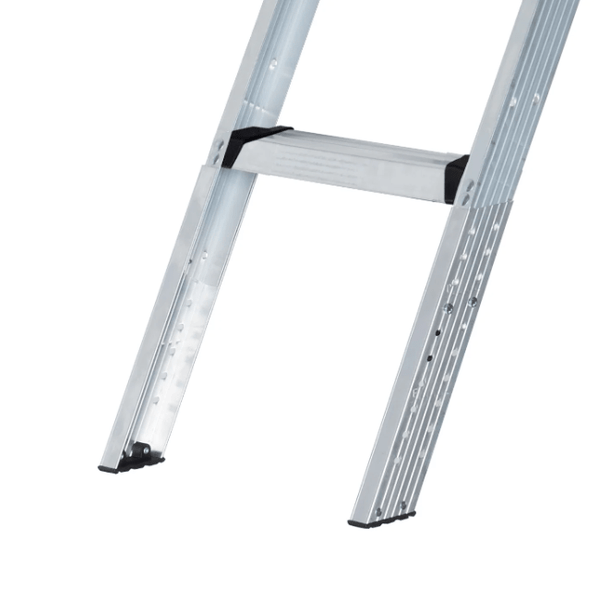

- Adjustable shoes – fit heights 7′ 8″ – 10′ 3″
- Aluminum handrail for a comfortable transition
SPECIFICATIONS
| Product |
Attic Ladders |
|---|---|
| Load Capacity (lbs) |
375 |
| Weight |
46.3 |
| Rough Opening (in) |
25.5×54 |
| Approx. Cubes (ft) |
7.3 |
| Certified |
ANSI |
| SKU |
AH2540MS |
| Ceiling Height Minimum (ft) |
7' 8" |
| Ceiling Height Maximum (ft) |
10' 3" |
| Rung Type |
Standard |
| Landing Space (in) |
67 |
| Style |
Standard |
| Material |
Aluminum |
| Project Width or Clearance (in) |
74" |
| Rail Size (in) |
0.75×3.375 |
| Size |
25 |
